Stainless Steel Grating – 304 & 316 materials for Corrosive Projects

Stainless steel grating is regarded as industrial grade bar grating, which is extremely strong, durable and corrosive resistant for all load bearing applications and is primarily used for pedestrian and light vehicle traffic

  • ●Both in Smooth or serrated surface
  • ●304 or 316 grade for choice
  • ●Wide range of bearing bar sizes and pitches
  • ●Special discount for large orders
  • ●Project reference can be supplied for your bid
  • ●ISO Certificated factory
  • ●CAD or 3D drawing can be supplied for your design and construction

Grating Type

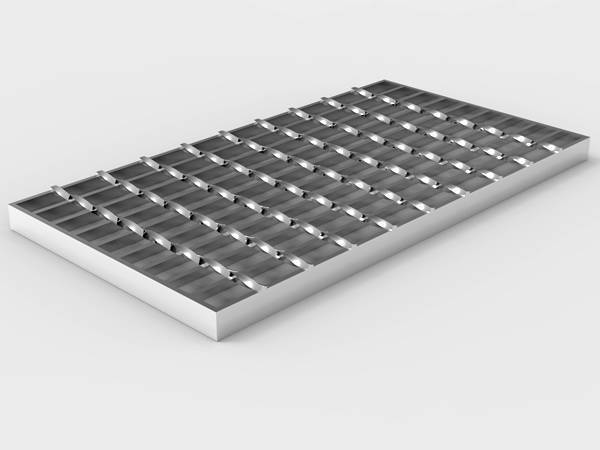

A piece of stainless steel welded steel grating on gray background..jpg

Welded Steel Grating

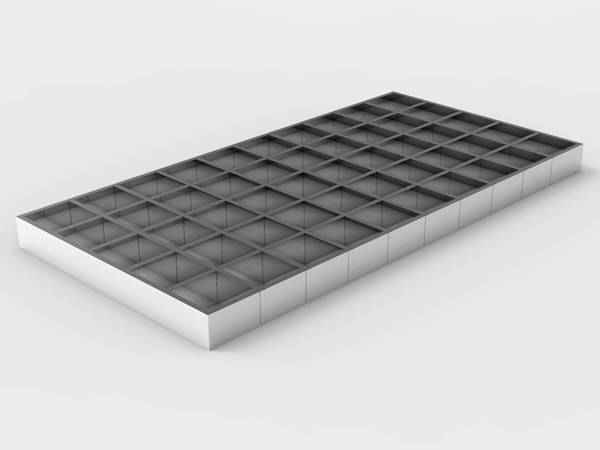

A piece of stainless steel press lock steel grating on gray background..jpg

Press lock Steel Grating



 Bearing Bar Type

A piece of standard or light duty stainless steel grating on gray background..jpg

Standard/Light Duty Grating

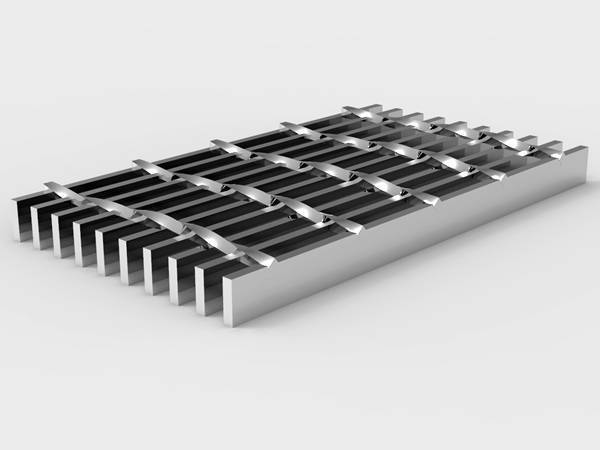

A piece of heavy duty stainless steel grating on gray background..jpg

Heavy Duty Grating

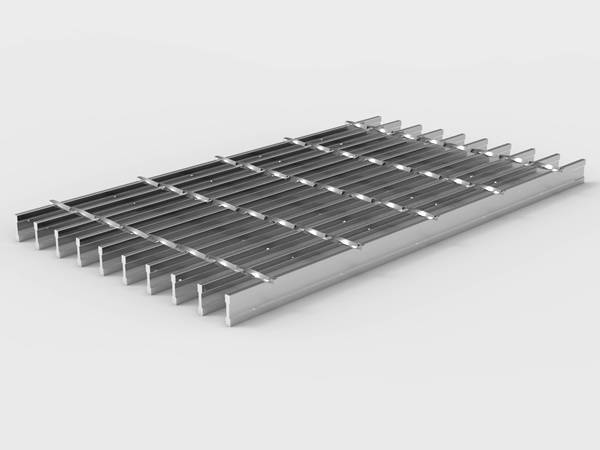

A piece of I bar stainless steel grating on gray background..jpg

I Bar Grating

Dimensions

●Material: stainless steel 304, 304L, 316, 316L

●Finish: mill finish, commercial clean and electro polished

●Bearing bar spacing: ranging from 1-3/16" to 11/16"

●Cross bar spacing: 2" or 4" on center

TypeDescriptionTensile StrengthYield
304Good corrosion resistance, high tensile strength, excellent for chemical processing, food industries, power plants and waste water treatment. Used in high temperature applications75,000 psi (min.)30,000 psi (min.)
316Better corrosion and pitting resistance than type 304, good heat resistance, used in chemical, pulp and paper processing, marine environments, textile equipment, petroleum refining.75,000 psi (min.)30,000 psi (min.)
Metric LegendImperial Legend
U = Safe Uniform Load (kPa)
C = Safe Concentrated Load (kN/meter of grating width)
D = Deflection (mm)		U = Safe Uniform Load (lbs./ft2)
C = Safe Concentrated Load (lbs./foot of grating width)
D = Deflection (inches)
Stainless Steel GradeLoad/DeflectionMultiply Carbon Steel Load Tables By:Based on Maximum Allowable Fiber Stress
304Stainless SteelU1.11120,000 P.S.I. (137.9 MPa)
C1.111
D1.151
304LStainless SteelU0.91716,500 P.S.I. (113.8 MPa)
C0.917
D0.949
316Stainless SteelU1.11120,000 P.S.I. (137.9 MPa)
C1.111
D1.151
316LStainless SteelU0.91716,500 P.S.I. (113.8 MPa)
C0.917
D0.949
