I Bar Steel Grating –Light Weight but High Strength

I shape bearing bars supplies lighter weight when the strength is equal to rectangular bar steel grating. I bar steel grating is suitable for both commercial and industrial applications.

●Special I shape bearing bars

●Lighter weight and high strength.

●Carbon steel, galvanized steel or stainless steel material options

●Ideal for both commercial and industrial applications.

●Wide range of configurations for choice

●Special discount for large orders

●Project reference can be supplied for your bid

●ISO Certificated factory

●CAD or 3D drawing can be supplied for your design and construction

Material Types

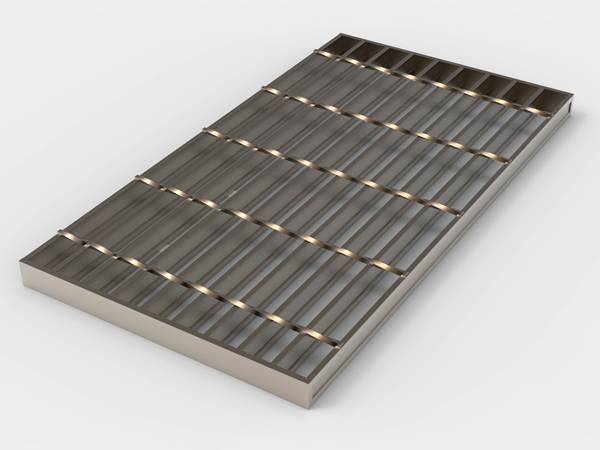

A piece of carbon steel I bar steel grating on white background..jpg

Carbon Steel

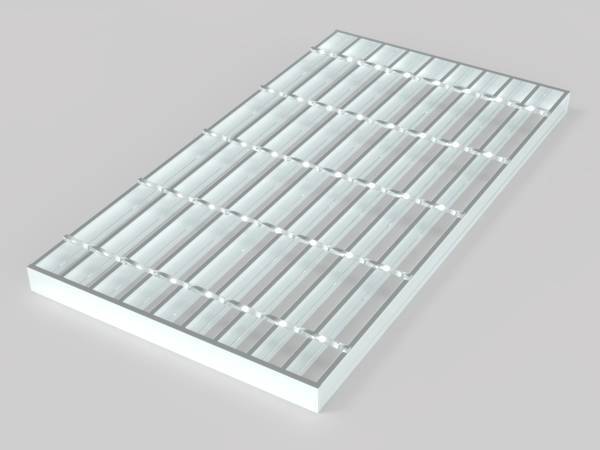

A piece of galvanized steel I bar steel grating on white background..jpg

Galvanized Steel

A piece of stainless steel I bar steel grating on white background..jpg

Stainless Steel

Surface Type

A piece of I bar steel grating with smooth surface on white background..jpg

Smooth Surface

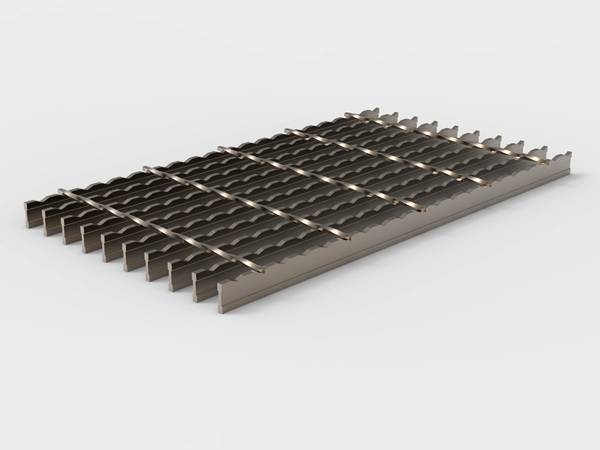

A piece of I bar steel grating with serrated surface on white background..jpg

Serrated Surface

Dimensions

Bearing bar sizes (mm)25 × 5 × 3, 32 × 5 × 3, 38 × 5 × 3, 50 × 7 × 4, 60 × 7 × 4, 75 × 7 × 4
Bearing bar pitch (mm)12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60
Cross bar pitch (mm)38, 50, 76, 100, 101.6
