Aluminum Grating – Your Ideal Choice for Indoor & Outdoor Decorations

Aluminum grating is an ideal choice when corrosion-resistant, lightweight materials that do not affect its load capacity and mechanical strength is required. Made of ASTM B221, 6063 or 6061 alloy, aluminum grating has great versatile and durable and is mainly used for platform ceilings and outdoor curtain walls.

It is lighter than steel grating and has high load carrying capacity

Aluminum gratings are made of aluminum alloy featured by cheap, economical and practical

Smooth and serrated surfaces are available. Good anti-slip performance for safety protection

Excellent corrosion and rust resistance for durability

A variety of specifications and styles are available to meet various application environments

Surface Type

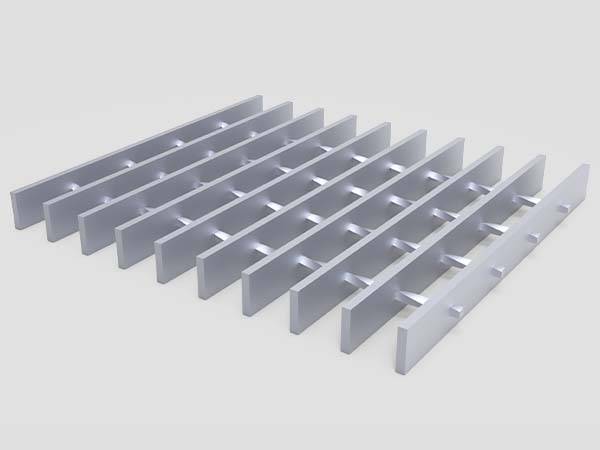

Aluminum grating with a plain surface is displayed..jpg

Plain surface

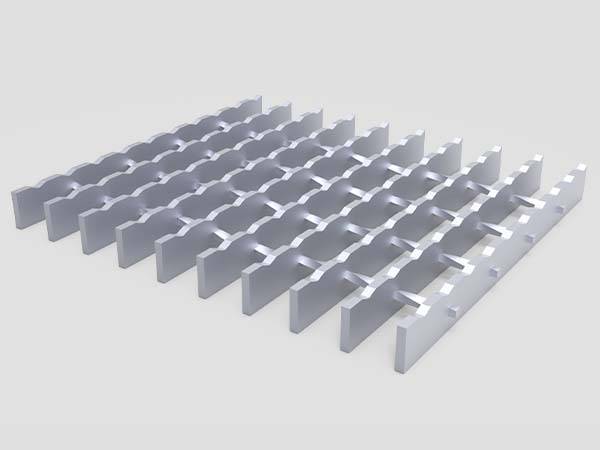

Aluminum grating with a serrated surface is displayed..jpg

Serrated surface


Aluminum grating are generally available in four types: swaged rectangular aluminum grating, swaged I-bar aluminum grating, swaged flush-top aluminum grating, and dovetail pressure locked aluminum grating

Swaged Rectangular Aluminum Grating

Dimensions

Cross bars are fully locked within the bearing bars, slightly below the top surface. It has clean and crisp lines. With nearly 80% open area, it is commonly used in public areas and is the industry accepted standard for industrial applications. If anti-slip is required, swaged rectangular aluminum gratings with a serrated surface are available upon request

Specification

Bearing bar size: 1" x 1/8" to 2–1/2" x 3/16" with 1/4" increments

Bearing bar spacing (center-to-center): 1–3/16", 15/16", 11/16" and 7/16"

Cross bar spacing (center-to-center): 4" or 2"

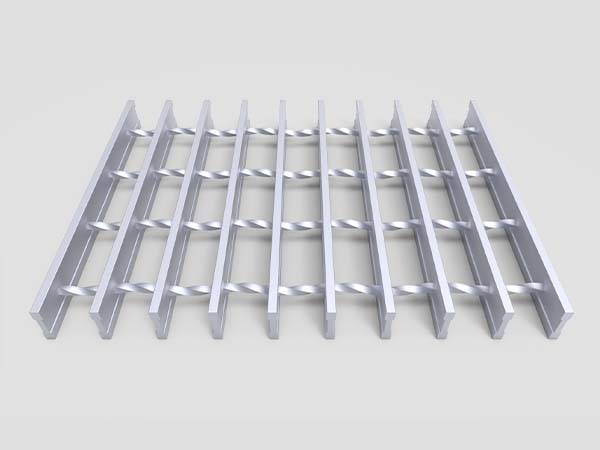

The picture shows the structure of swaged I bar aluminum grating with a plain surface..jpg

                    Swaged rectangular aluminum grating (horizontal)

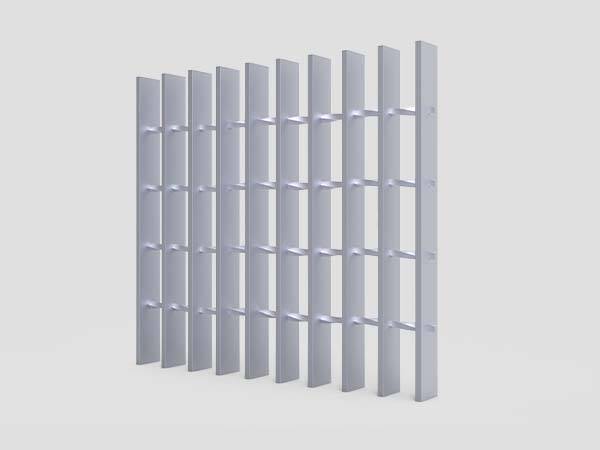

The picture shows the vertical view of swaged rectangular aluminum grating with plain surface..jpg

                         Swaged rectangular aluminum grating (vertical)

Swaged I-Bar Aluminum Grating

Dimensions

Supported by I-shaped extruded bearing bars, swaged I-bar aluminum grating carries the same load as the swaged rectangular aluminum grating with lighter weight and less costs. In addition, the striations at the top and bottom surfaces of the I bar increase the friction and provide high slip resistance performance

Specification

Bearing bar size: 1" x 1/4" to 2–1/2" x 1/4" with 1/4" increments

Bearing bar spacing (center-to-center): 1–3/16", 15/16", 11/16" and 7/16"

cross bar spacing (center-to-center): 4"or 2"

The picture shows the structure of swaged I bar aluminum grating with a plain surface..jpg

                            Swaged I bar aluminum grating (horizontal))

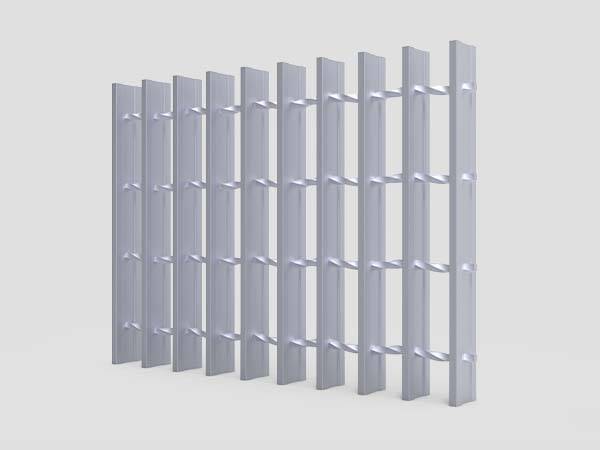

The picture shows vertical view of the swaged I bar aluminum grating..jpg

                                 Swaged I bar aluminum grating (vertical)

Swaged Flush-Top Aluminum Grating

Dimensions

Cross bars are permanently locked within the bearing bars to lock the pressure via unique extruded cross bars. Swaged flush-top aluminum grating provides an enhanced walking surface for areas subject to continuous pedestrian traffic. If anti-slip is required, we can provide swaged flush-top aluminum gratings with a serrated surface. It is mainly used for public areas.

Specification

Bearing bar size: 1 x 1/8" to 2–1/2" x 3/16" with 1/4" increments

Bearing bar spacing (center-to-center): 1–3/16", 15/16", 11/16" and 7/16"

Cross bar spacing (center-to-center): 4"or 2".

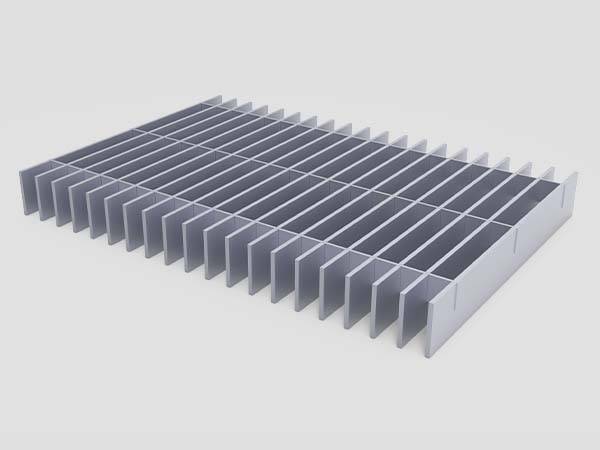

Swaged flush-top aluminum grating with a plain surface is displayed..jpg

                              Swaged I bar aluminum grating (horizontal)

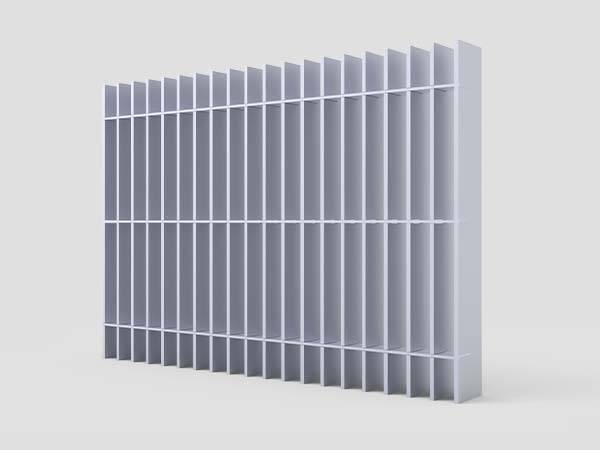

The picture shows the vertical view of swaged flush-top aluminum grating..jpg

                                 Swaged flush-top aluminum grating (vertical)

Dovetail Pressure Locked Aluminum Grating

Dimensions

Dovetail pressure locked aluminum grating is manufactured by inserting deep rectangular cross bars into pre-punched bearing bars to form an interlocking structure with strong lateral stability. Its neat appearance and tight spacing make it popular in architectural designs and is commonly used as sun shades and infill panels.

Specification

Bearing bar size: 1 x 1/8" to 2–1/2" x 3/16" with 1/4" increments

Bearing bar spacing (center-to-center): 1–3/16", 15/16", 11/16” and 7/16"

Cross bar spacing (center-to-center): 4"or 2"

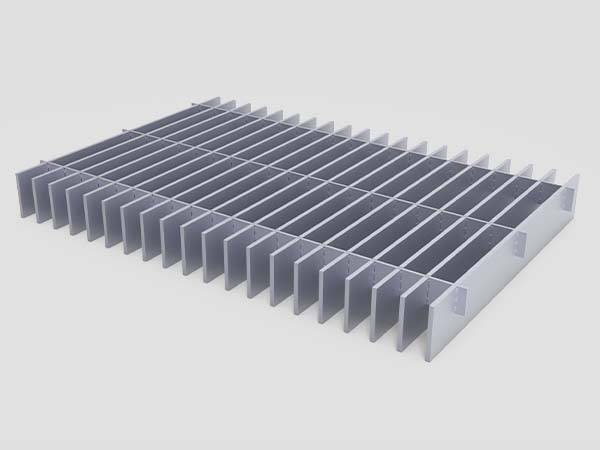

Dovetail pressure locked aluminum grating with a plain surface is displayed..jpg

               Dovetail pressure locked aluminum grating (horizontal)

The picture shows the top view of dovetail pressure locked aluminum grating..jpg

                      Dovetail pressure locked aluminum grating (vertical)

Application

Because of its light weight, corrosion resistance, and non-sparking, Aluminum gratings are widely used in indoor ceilings, outdoor curtain walls and other decorative applications due to its lightweight, excellent corrosion resistance and non-sparking properties. It is suitable for industrial applications where the strength-to-weight ratio is important, such as wastewater treatment plants. It is mainly used for safety protection and served as walkways, floors, platforms, stair treads, fences, etc

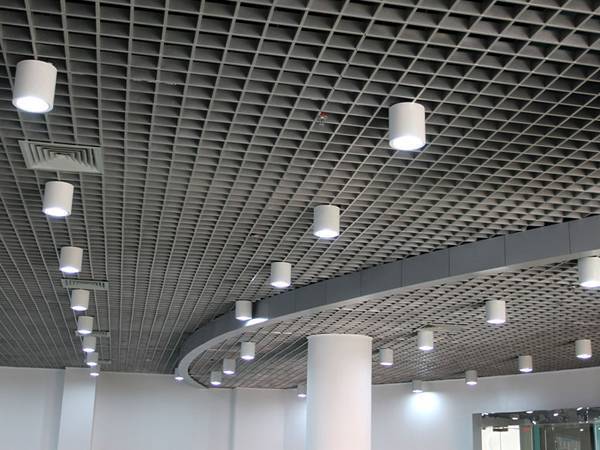

Aluminum gratings are used for interior ceilings..jpg

                          Aluminum gratings for interior ceilings

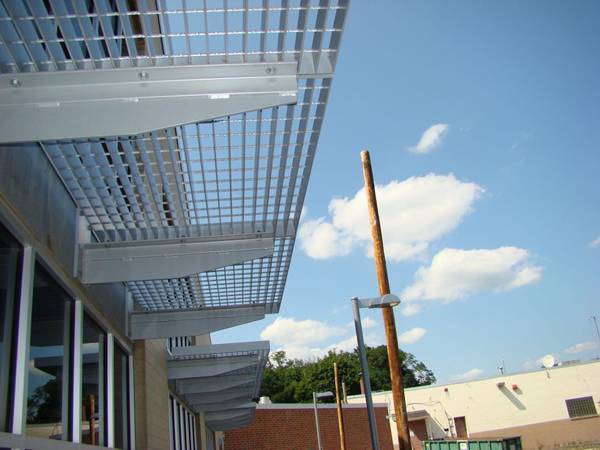

Aluminum gratings serve as sun shades against the blue sky..jpg

                            Aluminum gratings for sun shades

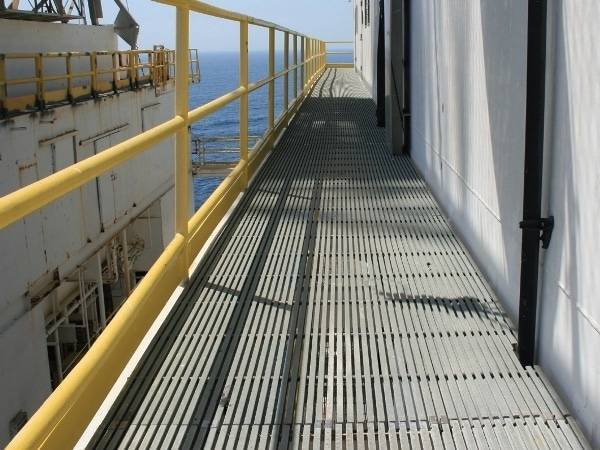

Aluminum gratings are used as platform walkways..jpg

                     Aluminum gratings for platform walkways

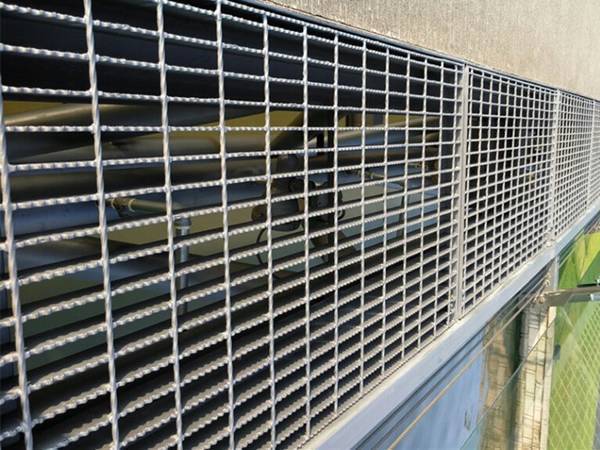

Aluminum gratings are used for building facades..jpg

                  Aluminum gratings for building facades
